Pasion eBike

36V 250W 350W 48V 500W 750W High Speed Brushless Electirc Bicycle Gear Hub Motor E-bike Motor Front Rear Wheel Drive PASION

$79.00 USD
$149.00 USD $79.00 USD
Tax included. Shipping calculated at checkout.

Description

Report Item

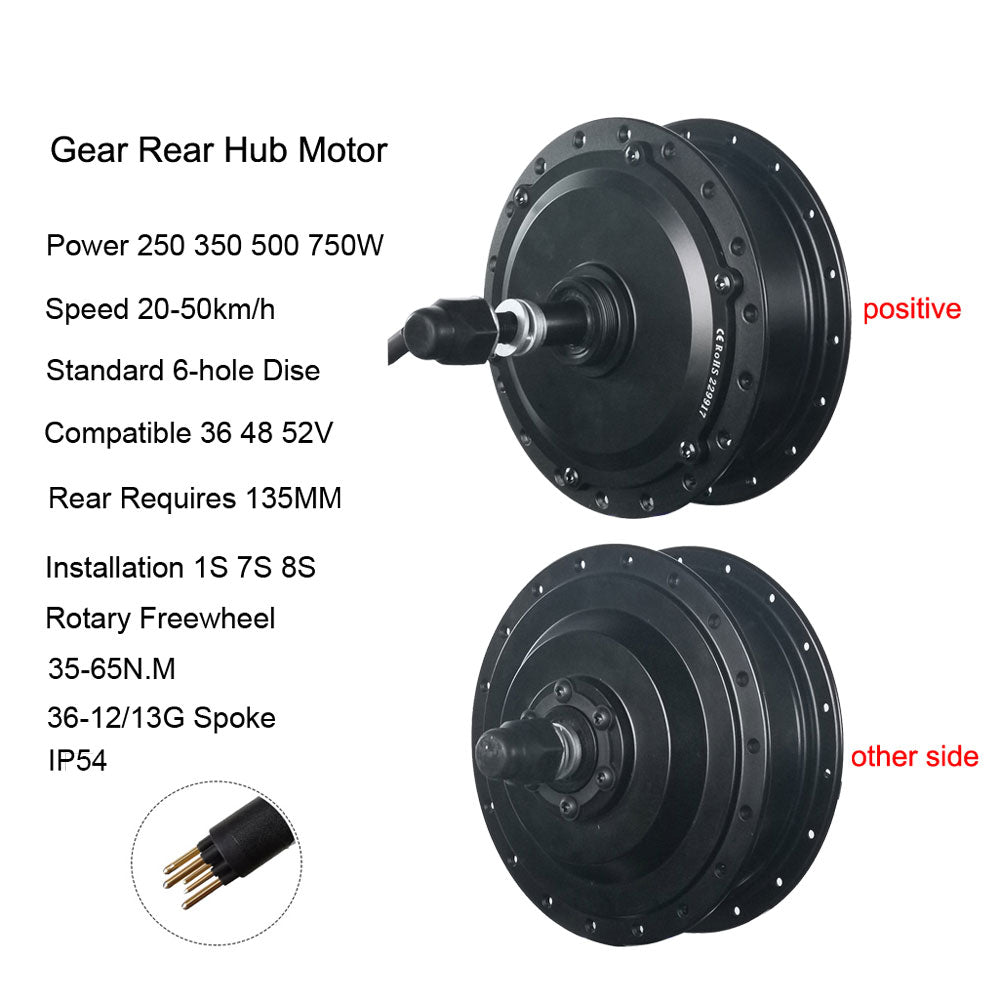

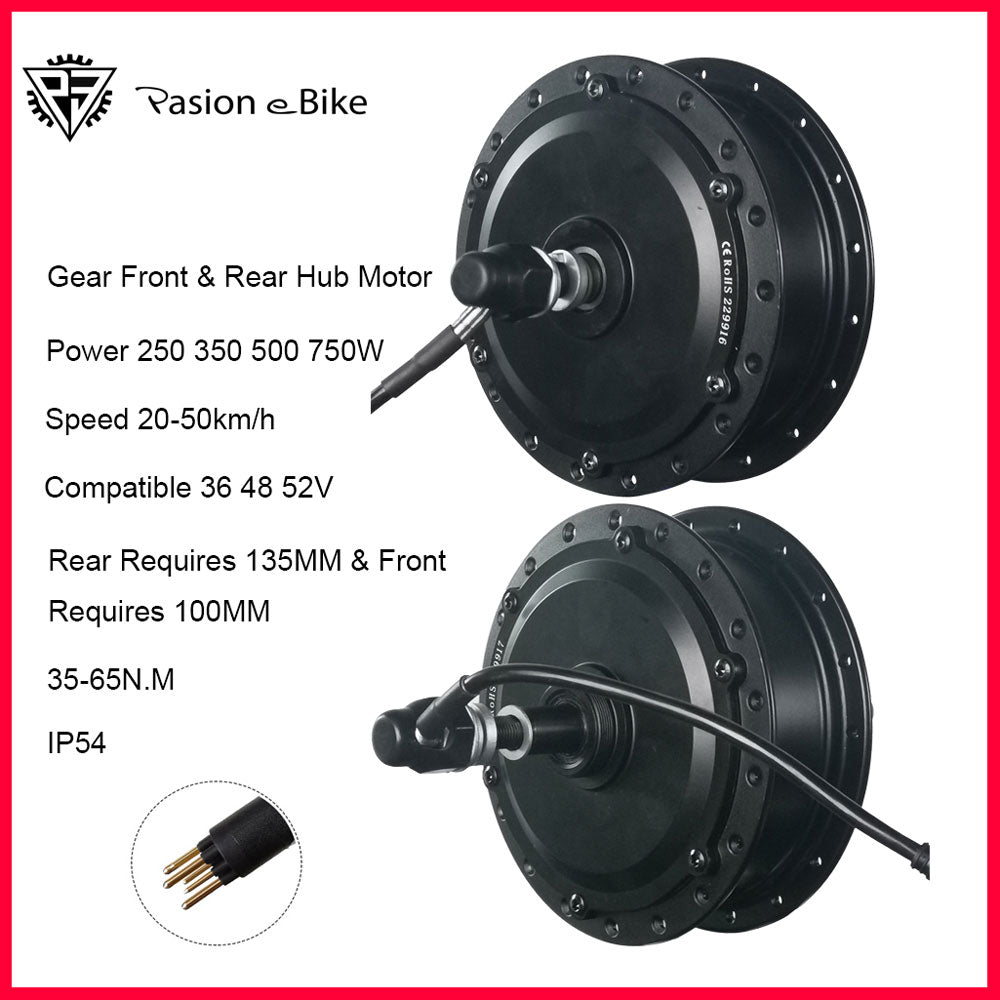

500W HUB MOTOR

Installation parameters

Brake disc brake

Opening size (mm / old) Rear 135 or Front 100

Spoke specification: 36h12g-13g

Testing and certification

Waterproof grade: IP 54

Certification RoHS / CE

Corrosion protection grade (hour) 24/96

Main specifications

Installation position: rear or Front motor

Wheel diameter (inch) 16 /18/ 20/24/26/27.5/28/29/700C

Structural gear drive

Rated voltage (DCV) 24/36/48/52/60V

Rated speed (km/h) 25-40;

Rated power (W) 220

Maximum torque: 45 N.m

Efficiency (%) ≥ 76

Color: Black

Weight (kg) 3.5kg

Noise (DB) < 45

Working temperature: - 30-55 ℃

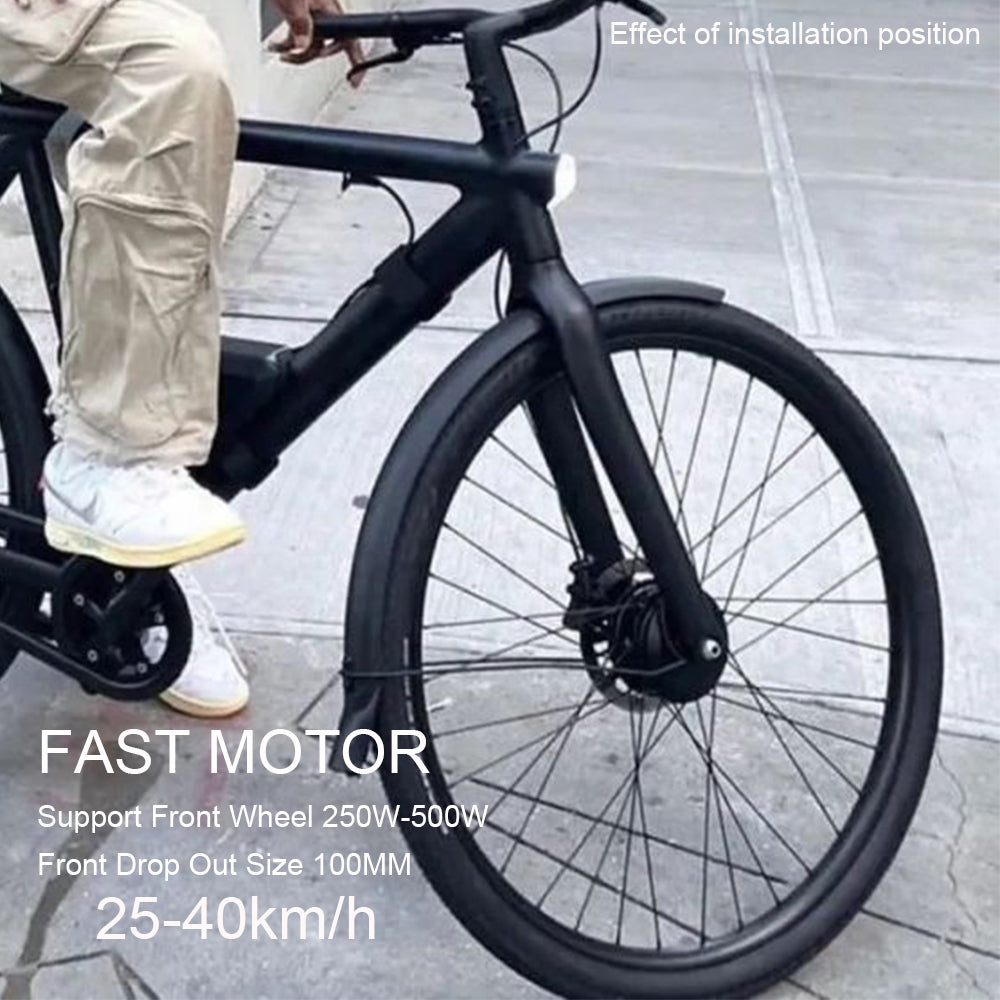

500W FRONT HUB MOTOR

500W REAR HUB MOTOR

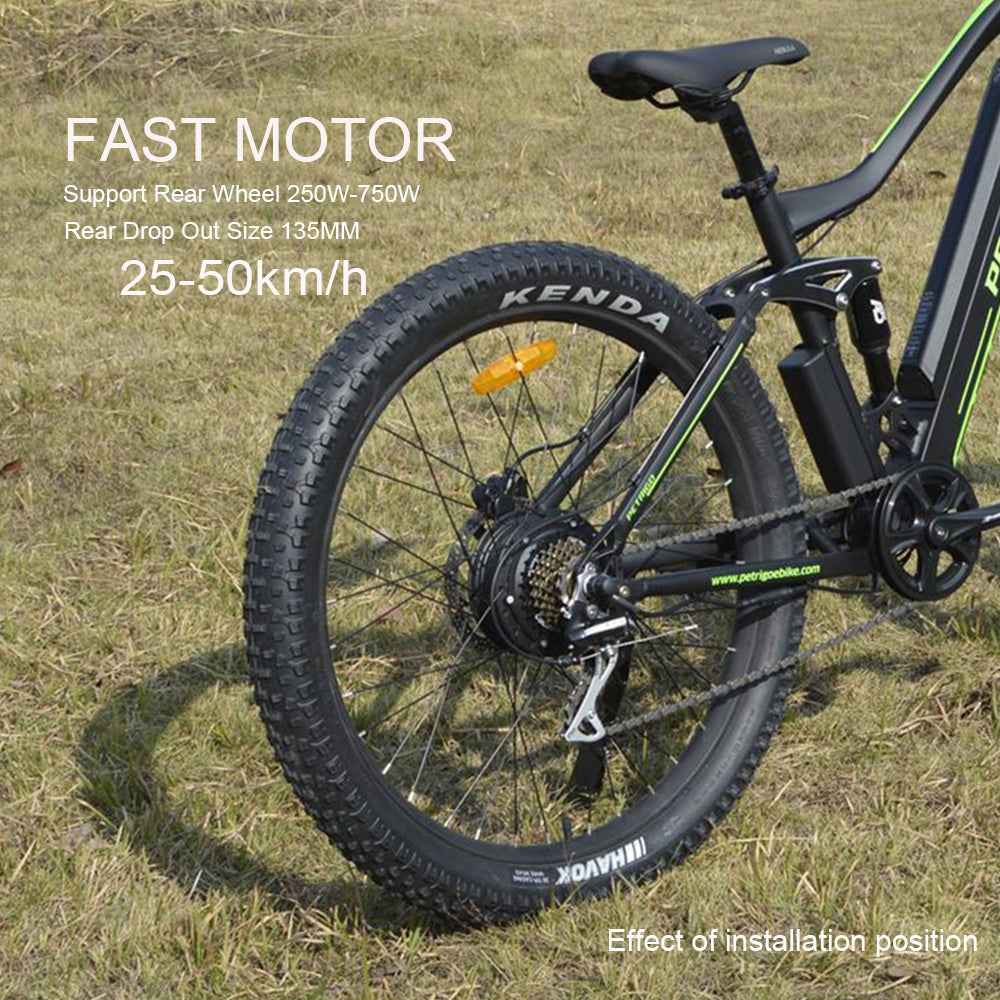

750w HUB MOTOR

Installation parameters

Brake disc brake

Opening size (mm / old) 135

Spoke specification: 36h12g-13g

Testing and certification

Waterproof grade: IP 54

Certification RoHS / CE

Corrosion protection grade (hour) 24/96

Main specifications

Installation position: rear motor

Wheel diameter (inch) 16 /18/ 20/24/26/27.5/28/29/700C

Structural gear drive

Rated voltage (DCV) 36/48/52/60V

Rated speed (km/h) 25-50;

Rated power (W) 220

Maximum torque: 60 N.m

Efficiency (%) ≥ 76

Color: Black

Weight (kg) 3.7kg

Noise (DB) < 45

Working temperature: - 30-55 ℃

350W HUB MOTOR

Installation parameters

Brake disc brake

Opening size (mm / old) Rear 135 or Front 100

Spoke specification: 36h12g-13g

Testing and certification

Waterproof grade: IP 54

Certification RoHS / CE

Corrosion protection grade (hour) 24/96

Main specifications

Installation position: rear or Front motor

Wheel diameter (inch) 16 /18/ 20/24/26/27.5/28/29/700C

Structural gear drive

Rated voltage (DCV) 24/36/48/52/60V

Rated speed (km/h) 25-40;

Rated power (W) 220

Maximum torque: 45 N.m

Efficiency (%) ≥ 76

Color: Black

Weight (kg) 3.5kg

Noise (DB) < 45

Working temperature: - 30-55 ℃


350W FRONT HUB MOTOR

350W REAR HUB MOTOR


250W HUB MOTOR

Installation parameters

Brake disc brake

Opening size (mm / old) Rear 135 or Front 100

Spoke specification: 36h12g-13g

Testing and certification

Waterproof grade: IP 54

Certification RoHS / CE

Corrosion protection grade (hour) 24/96

Main specifications

Installation position: rear or Front motor

Wheel diameter (inch) 16 /18/ 20/24/26/27.5/28/29/700C

Structural gear drive

Rated voltage (DCV) 24/36/48/52V

Rated speed (km/h) 25-35;

Rated power (W) 220

Maximum torque: 35 N.m

Efficiency (%) ≥ 76

Color: Black

Weight (kg) 3kg

Noise (DB) < 45

Working temperature: - 30-55 ℃


250W FRONT HUB MOTOR

250W REARHUB MOTOR
