52V Triangle Battery 52V 30AH Electrical Bike Battery Li Ion 52V 20Ah E Bike Batterie Pack Electric Bike Wheel Lithium Battery

  • $599.00


52V Battery work with Pasion eBike 1500W Motor Kit, will give Long Mileages and Faster Spe



​We will make it plug and play for you, when you buy our 52v Battery & 1500W Motor kit bundle

详情页-普通接头_01详情页-普通接头_02详情页-普通接头_03

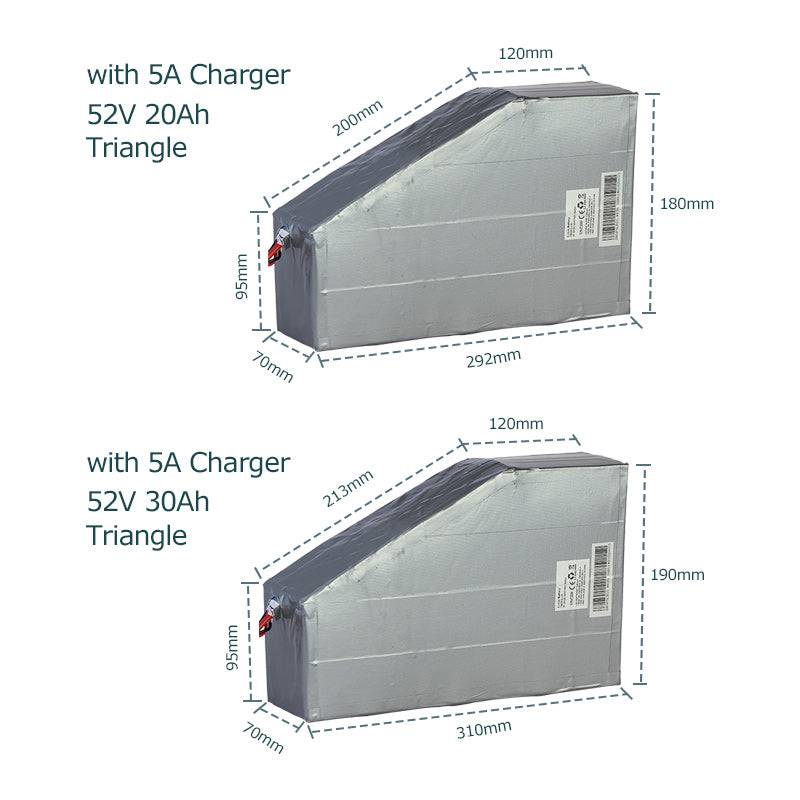

Note: Battery Size Refer to Size Picture (Manual measure by human, please allow the tolerance)

详情页-普通接头_05详情页-普通接头_06详情页-普通接头_07详情页-普通接头_08详情页-普通接头_10详情页-普通接头_12

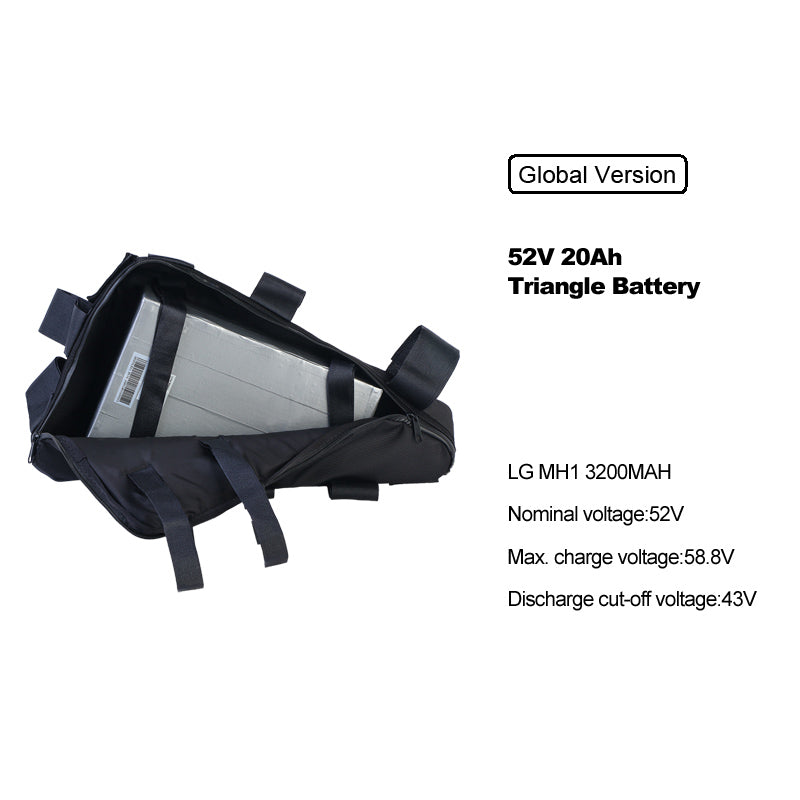

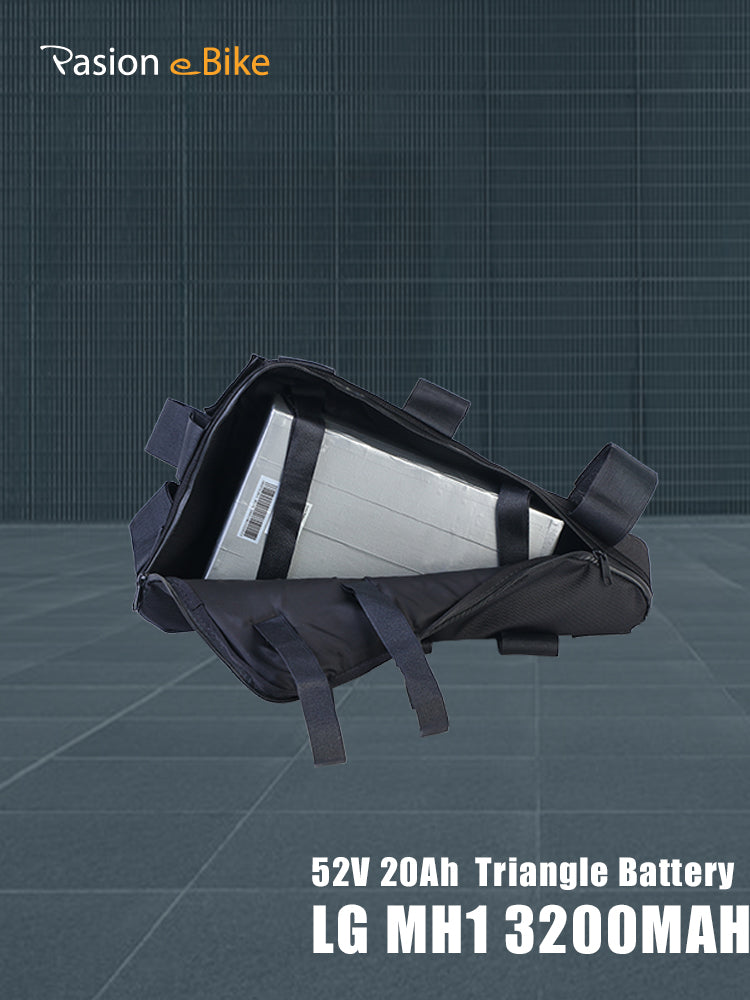

52V 20AH Electric Bike Battery

Items:  51.8V 20.3AH
Source Resistance (mΩ):   <40mΩ
Battery Size:   Refer to Size Picture (Manual measure by human, please allow the tolerance.)
Discharge Cutoff Voltage (V):   44+/-1V
Charge Cutoff Voltage (V):   58.8V
Rated Discharge Current (A):   35A
Maximum Continuous Discharge Current (A):  59.4A
Maximum Instantaneous Discharge Current (A):  101.5A
Maximum Continuous BMS Limited Current (A):  35A
Maximum Instantaneous BMS Limited Current (A):  80A
Maximum Continuous Charge Current (A):  10A
Charge Mode:  CC-CV
Standard Charge Current (A):  2A
Charge Time under Standard Charge Current:  12 hours
Fast Charge Current (A):  5A
Charge Time under Fast Charge Current:  4.5 hours
Charge Temperature Range:  0-55°
Discharge Temperature Range:  -20-60°
Battery Net Weight (include BMS) (kg):  5.6kgs
Battery Gross Weight (include Package) (kg):  8kgs
Charging Cycles:  >700 times
Recommended For Motor: Pasion e Bike 48v Motor BBS02 BBSHD

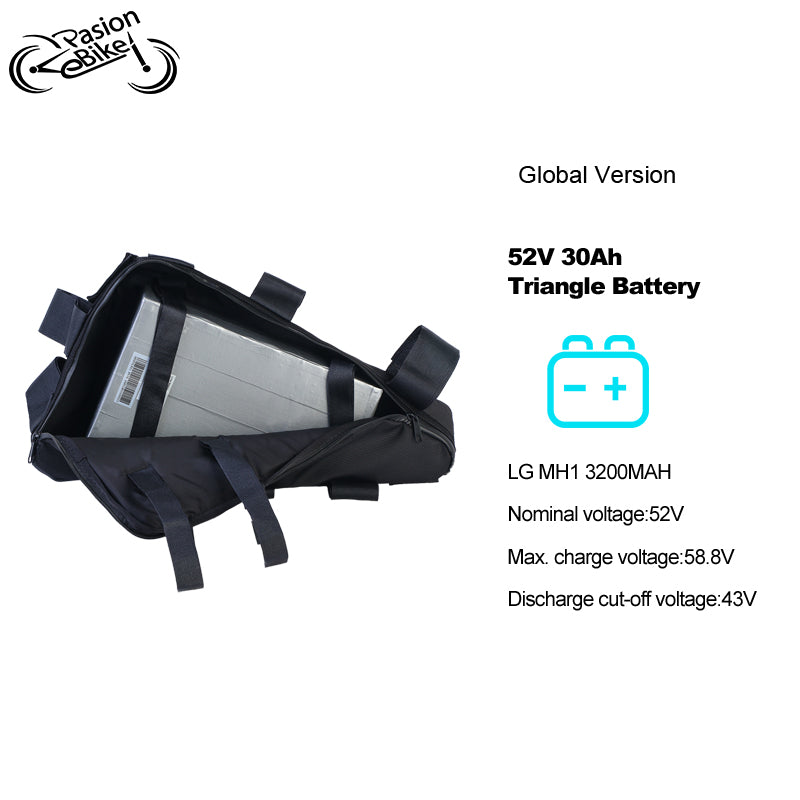

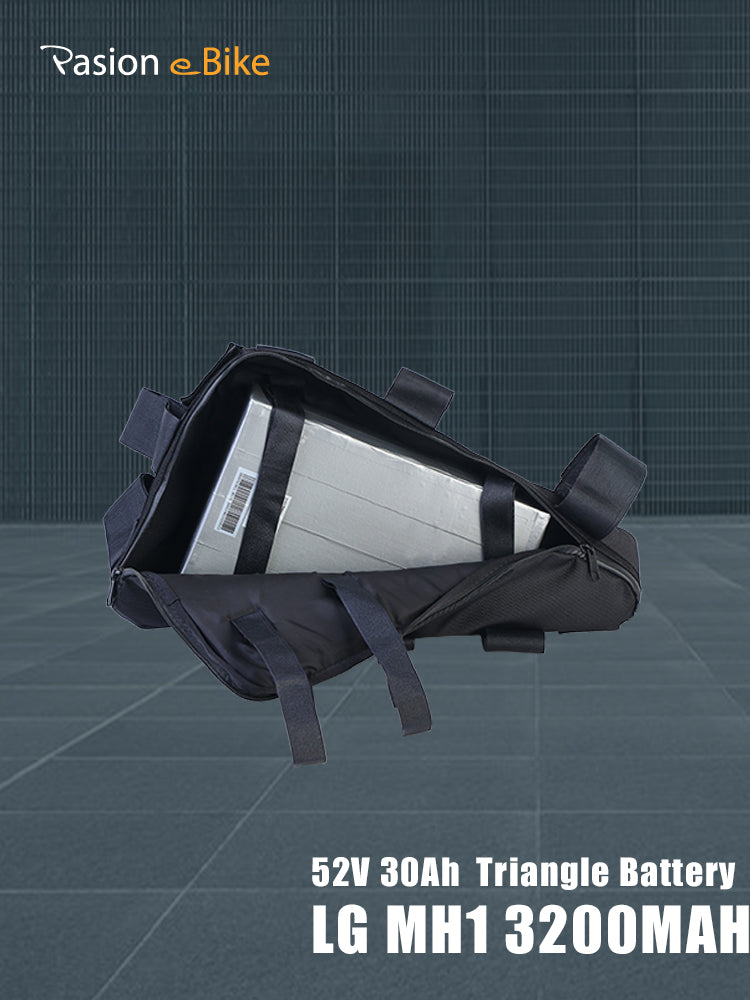

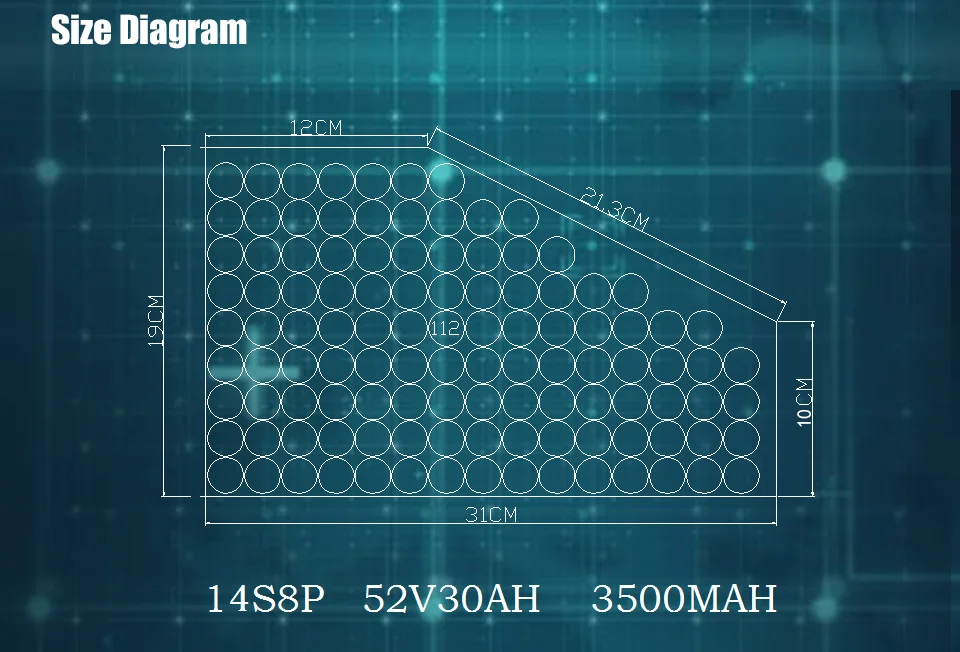

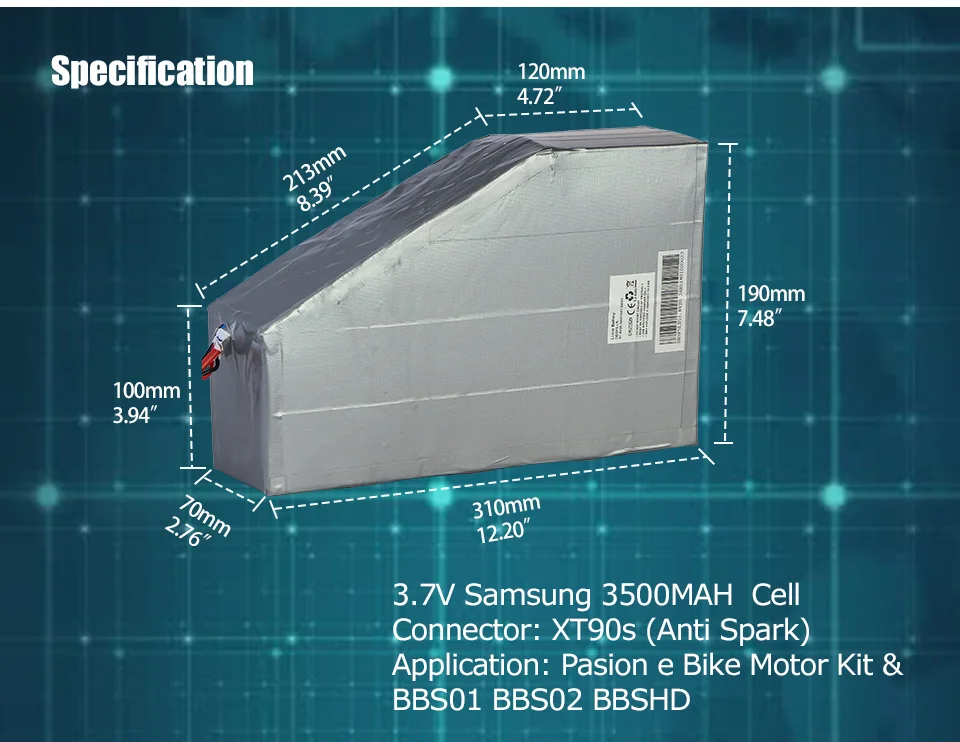

52V 30AH Electric Bike Battery

  • Battery cell type: INR18650-3500mAh
  • Nominal Voltage: 52V
  • Charging Voltage: 58.8± 0.3V
  • Nominal Capacity: 30Ah (0.2C)
  • Standard Charge: 2. 0A
  • Standard Discharge: 20A
  • Maximum discharge current: 30A
  • Over charge protection voltage: 4.25V±0.025V
  • PACK Overcharge protection voltage: 58.8±1.0V Test current 0.2A
  • Delay time for over charge protection: 1.2-2.0S
  • Over charge protection release voltage: 4.19V±0.1V
  • Over discharge protection voltage: 2.80V±0.10V
  • PACK Over discharge protection voltage: 39-42V Test current 0.2A
  • Delay time for over discharge protection: 0.3-2.0S
  • Over discharge protection release voltage: 3.0V±0.10V
  • Over current protection: 146~185A
  • Delay time for over current protection: 200-300mS
  • Delay time for short circuit protection: ≦600uS
  • Power consumption of protection circuit: ≦30μA
  • Operating Temperature: 0.2C
  • Charge: Ambient Temperature -30℃ ~ +85℃, 45to 85%RH
  • Cell Temperature: 0℃ ~ +50℃, 45 to 85%RH
  • Discharge: Ambient Temperature -30℃ ~ +85℃, 45 to 85%RH
  • Charge / Discharge Current and Termination:
  •       Charge: The battery pack is capable of continuous charge at
  •       58.8V and a 2.0A current, cut off current with 200mA
  •       Discharge: The battery pack is capable of continues discharge at rate with
  •       20A ,cut off voltage with(39-42)V
