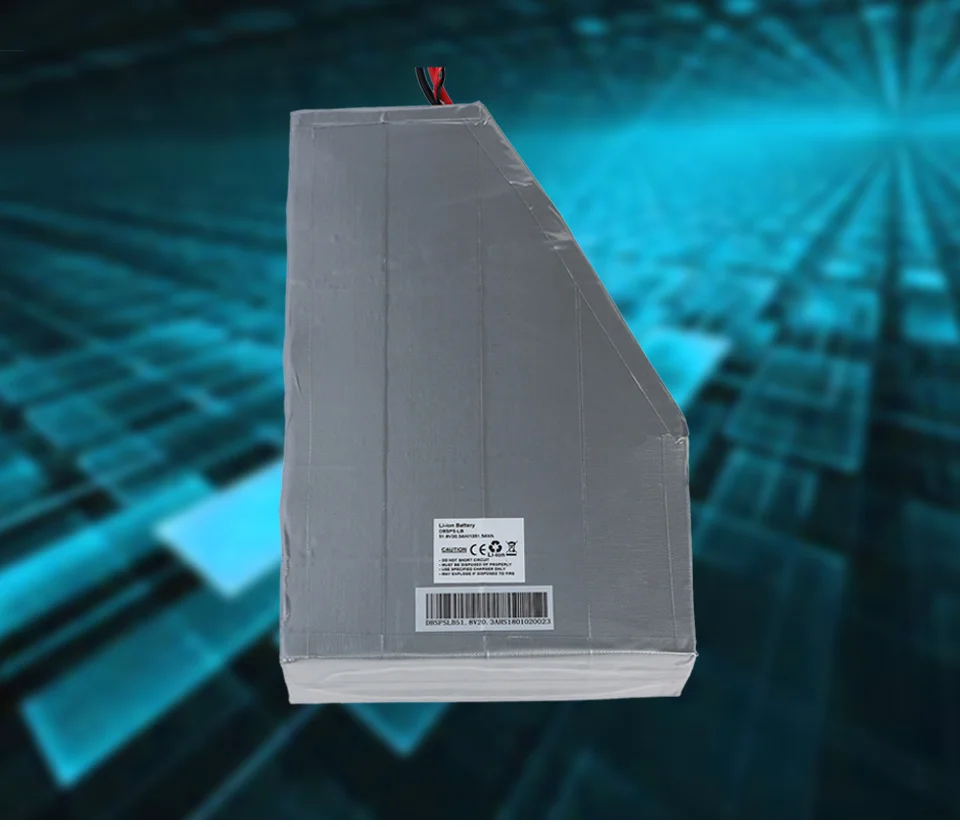

52V Triangle Battery Electrical Bike Battery Li Ion 52V 20Ah E Bike Batterie Pack Electric Bike Wheel Lithium Battery
Pasion eBike Battery Pack 52V Triangle Battery Electric Bike Battery Kit 52V 20AH Mountain Bike Li-Ion Battery For Bicycle Wheel Motor Kit.
Brand Name: Pasion e bike
Capacity: 20Ah
Voltage: 52V Electric Bike Battery
48V 500W with 52V 20ah Pedal Assisted:166KM
48v 750w with 52V 20ah Pedal Assisted:124KM
48V 1000W with 52V 20ah Pedal Assisted:114KM
48v 1500w with 52V 20ah Pedal Assisted: 90KM
All Calculation is in Thoery
Type: Lithium Battery
Items: 52V 20AH e Bike
Battery Cell Type: 3.7V LG 3200MAH Powerful 18650 Cell
Recommended For Motor: Pasion e Bike Motor Wheel 1500W 1000W 750W 500W
Battery E Bike Advantage: 52V Gives More Mileages and Faster Speed
Insurance: Backed up with Ping An Global Insurance up to 2 Million Dollar
52V 20AH e Bike Battery:
Items: 51.8V 20.3AH Source Resistance (mΩ): <40mΩ Battery Size: Refer to Size Picture (Manual measure by human, please allow the tolerance.) Discharge Cutoff Voltage (V): 44+/-1V Charge Cutoff Voltage (V): 58.8V Rated Discharge Current (A): 35A Maximum Continuous Discharge Current (A): 59.4A Maximum Instantaneous Discharge Current (A): 101.5A Maximum Continuous BMS Limited Current (A): 35A Maximum Instantaneous BMS Limited Current (A): 80A Maximum Continuous Charge Current (A): 10A Charge Mode: CC-CV Standard Charge Current (A): 2A Charge Time under Standard Charge Current: 12 hours Fast Charge Current (A): 5A Charge Time under Fast Charge Current: 4.5 hours Charge Temperature Range: 0-55° Discharge Temperature Range: -20-60° Battery Net Weight (include BMS) (kg): 5.6kgs Battery Gross Weight (include Package) (kg): 8kgs Charging Cycles: >700 times Recommended For Motor: Pasion e Bike 48V Motor kit & for Bafang BBS02 BBSHD
