Passion eBike

Pasion e Bike Battery Pack 52V Electric Bike Battery Kit 52V 17AH Mountain Bike Li Ion Battery For Bicycle Wheel Motor Kit

Regular price $499.99 USD
Regular price $699.99 USD Sale price $499.99 USD
Tax included. Shipping calculated at checkout.

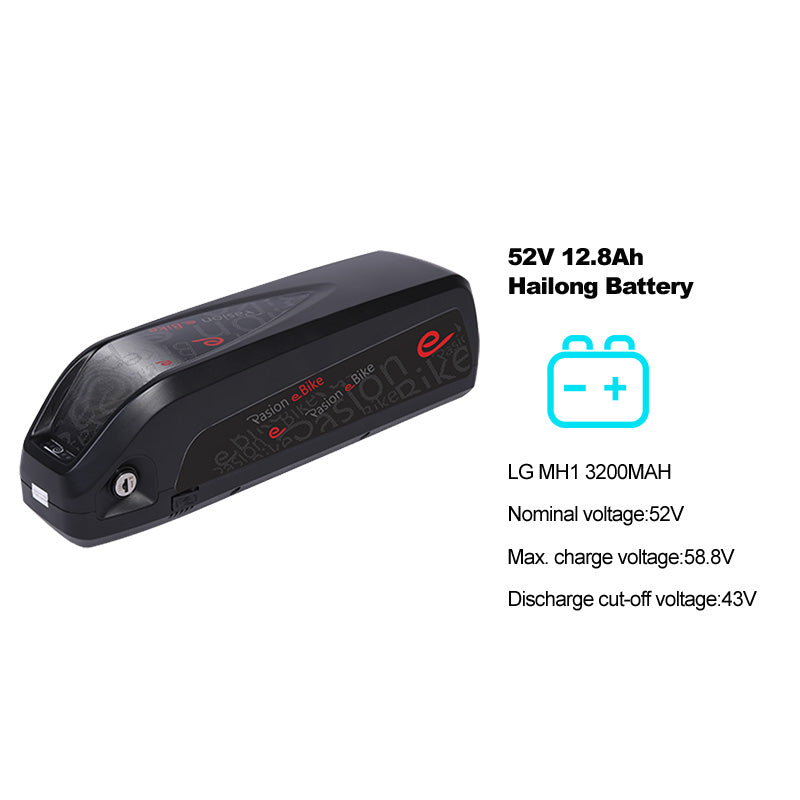

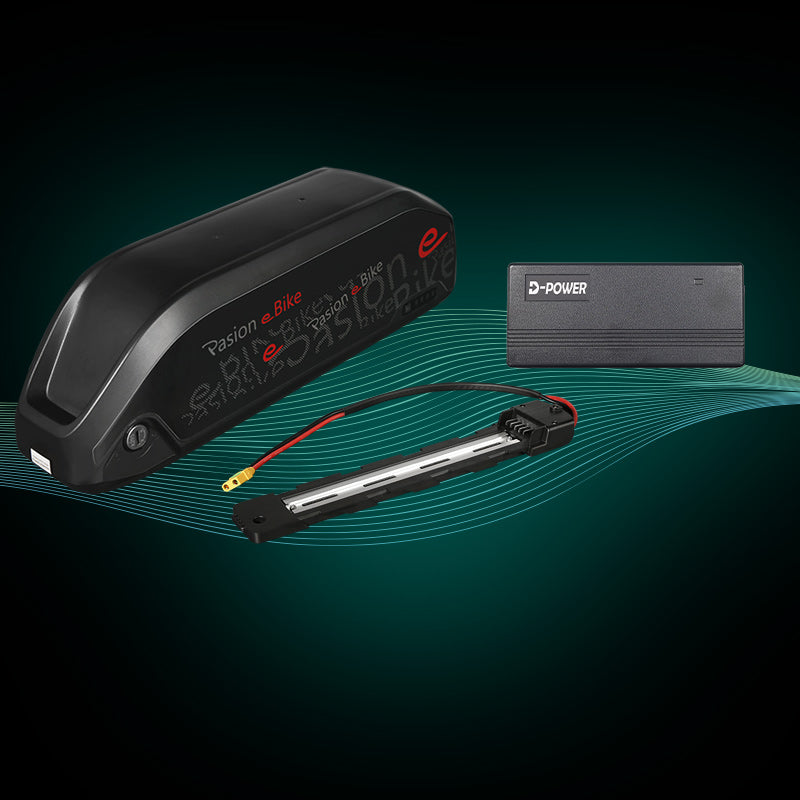

Pasion e Bike Battery Pack 52V Electric Bike Battery Kit 52V 17.5AH Mountain Bike Li Ion Battery For Bicycle Wheel Motor Kit

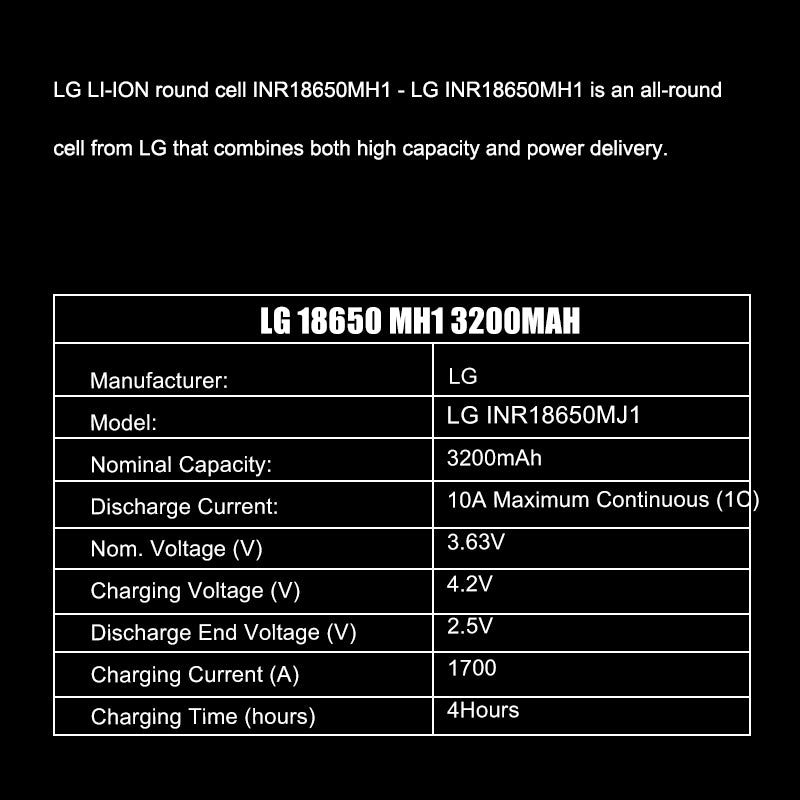

Pasion eBike Battery Cell Model : LG Cell
Nominal Voltage:52V
Nominal Capacity:17Ah
Minimum Capacity:15.15Ah (0.2C discharge at 25℃)
Charging Voltage:58.8V DC
Standard Charging Current:3A
Maximum Charging Current:5A
Standard Discharge Current:3.2A(0.2C discharge at 25℃)
ContinuousDischargeCurrent:16A(1Cdischargeat25℃)
Maximum Discharge Current:45A(Duration<10minutes)
Over Charge Protection Voltage ( Single Cell):4.25V±0.025V
Delay Time for Over Charge Protection:≤1.2S
Over Charge Protection Release Voltage:4.19V±0.1V
Over Discharge Protection Voltage:2.8V±0.1V
Delay Time for Over Discharge Protection:≤3000mS(Tipical 1000mS)
Over Discharge Protection Release Voltage:3.0±0.1V
Over-current Protection Current:150A±20A
Delay time for Over-current Protection:≤2000mS(Tipical 1000mS)
Short-circuit Protection: Yes
Short-circuit Protection Delay:≤500uS(Tipical 300mS)
Charge and Discharge Over Temperature Protection:70℃±5℃
Charge and Discharge Over Temperature Protection Release: 65℃±5℃andUnload
Power Consumption of Static Mode:≤100μA
Battery Net Weight:4KG
Charge Ambient Temperature : 0℃ ~ +45℃ , 65% ± 20% RH
Discharge Ambient Temperature:-10℃ ~ +60℃, 65% ± 20% RH
